Description

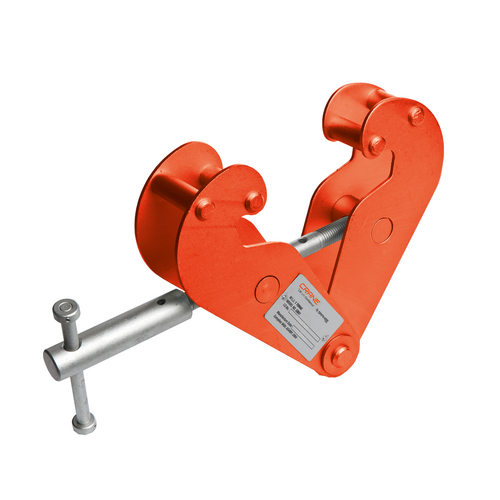

CRANE CT SERIES beam clamps are designed to work hand-in-hand with our chain and lever blocks. Simple and easy to use, fully adjustable.

Specifications

PRODUCT CODE Net Weight (kg) A[max.]mm B[min.]mm B[max.]mm F[min.]mm F[max.]mm C mm D mm Jaw opening(mm) H mm E mm G[max.]mm capacity (T) Select
CBC1 4 260 180 360 102 155 64 5 75-220 22 215 25 1 Selected
CBC2 5 260 180 360 102 155 74 6 75-220 22 215 25 2 Select
CBC3 9 354 235 490 140 225 103 8 80-320 24 260 45 3 Select
CBC4 11 354 235 490 140 225 110 10 80-320 28 260 45 5 Select
