Description

Specifications

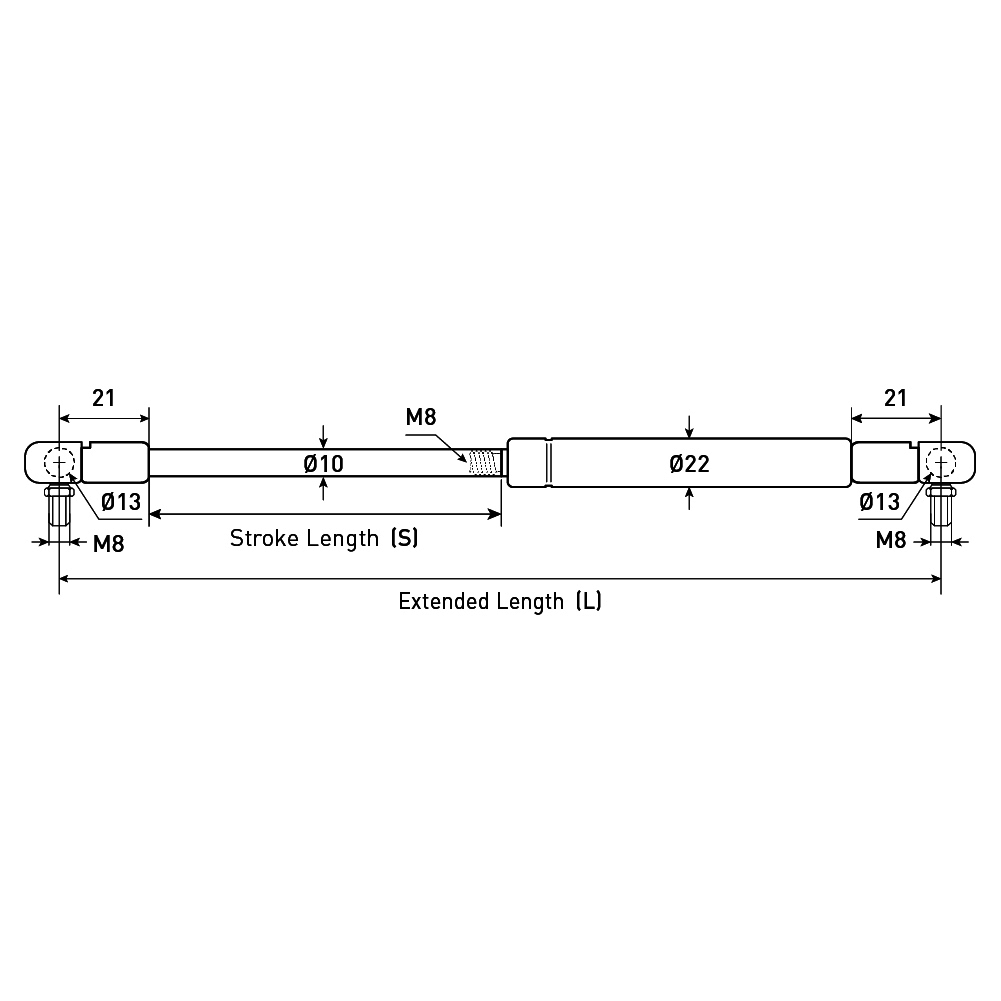

PRODUCT CODE Body Length (mm) Compressed Length (mm) Extended Length (mm) Stroke Length (mm) Thread / Pitch Pressure / Force (n) Select
22-500-1000 250 290 500 210 M8 x 1.25 1000 Select
22-500-100 250 290 500 210 M8 x 1.25 100 Select
22-500-1100 250 290 500 210 M8 x 1.25 1100 Select
22-500-1200 250 290 500 210 M8 x 1.25 1200 Select
22-500-200 250 290 500 210 M8 x 1.25 200 Select
22-500-300 250 290 500 210 M8 x 1.25 300 Select
22-500-400 250 290 500 210 M8 x 1.25 400 Select
22-500-500 250 290 500 210 M8 x 1.25 500 Select
22-500-50 250 290 500 210 M8 x 1.25 50 Selected
22-500-600 250 290 500 210 M8 x 1.25 600 Select
22-500-700 250 290 500 210 M8 x 1.25 700 Select
22-500-800 250 290 500 210 M8 x 1.25 800 Select
22-500-900 250 290 500 210 M8 x 1.25 900 Select
