Description

Specifications

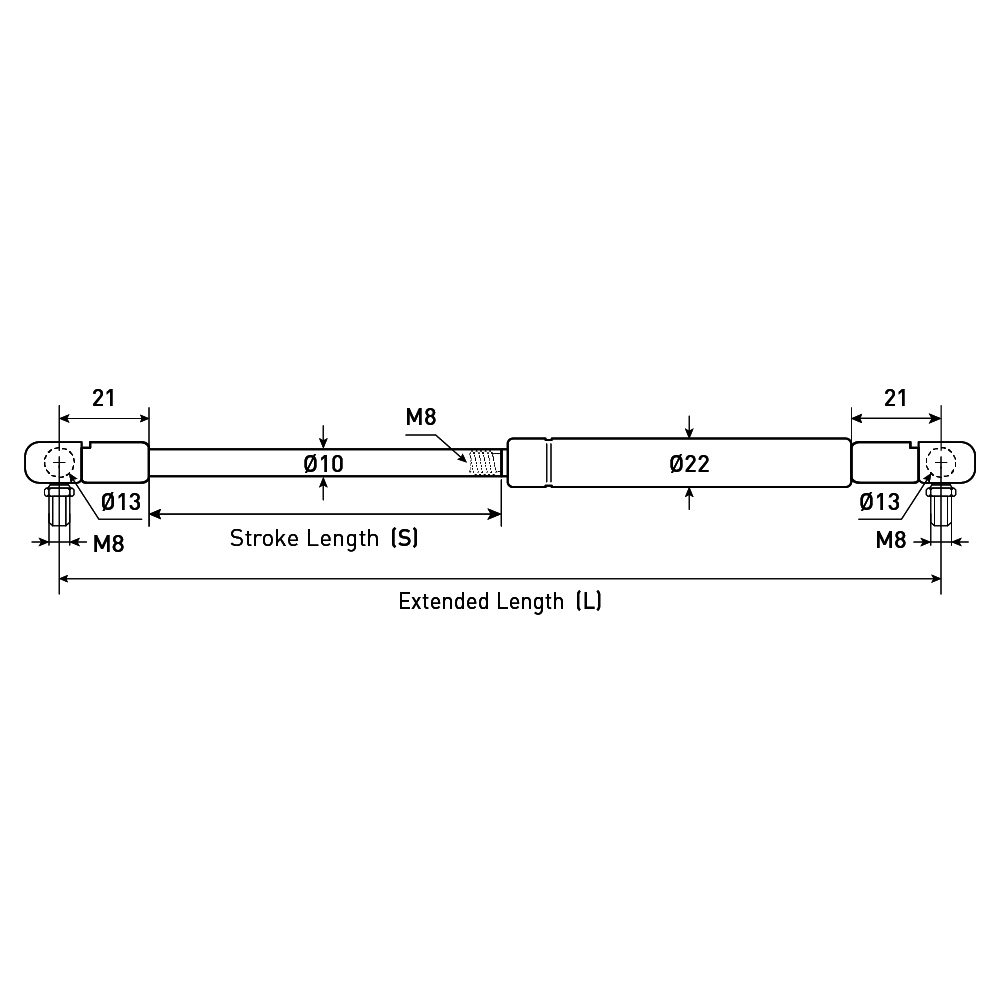

PRODUCT CODE Body Length (mm) Compressed Length (mm) Extended Length (mm) Stroke Length (mm) Thread / Pitch Pressure / Force (n) Select
22-560-1000 285 320 560 240 M8 x 1.25 1000 Select
22-560-100 285 320 560 240 M8 x 1.25 100 Select
22-560-1100 285 320 560 240 M8 x 1.25 1100 Select
22-560-1200 285 320 560 240 M8 x 1.25 1200 Select
22-560-200 285 320 560 240 M8 x 1.25 200 Select
22-560-300 285 320 560 240 M8 x 1.25 300 Select
22-560-400 285 320 560 240 M8 x 1.25 400 Select
22-560-500 285 320 560 240 M8 x 1.25 500 Select
22-560-50 285 320 560 240 M8 x 1.25 50 Selected
22-560-600 285 320 560 240 M8 x 1.25 600 Select
22-560-700 285 320 560 240 M8 x 1.25 700 Select
22-560-800 285 320 560 240 M8 x 1.25 800 Select
22-560-900 285 320 560 240 M8 x 1.25 900 Select
