Description

Specifications

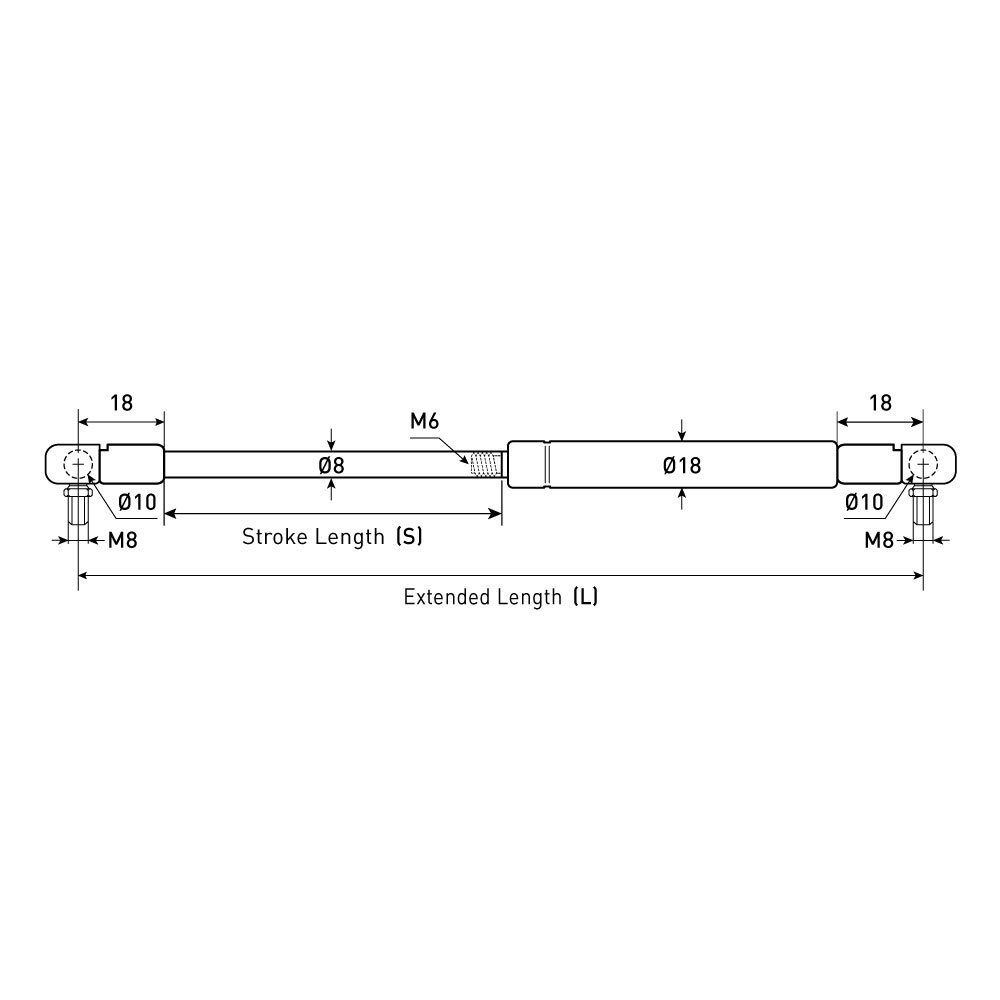

PRODUCT CODE Body Length (mm) Compressed Length (mm) Extended Length (mm) Stroke Length (mm) Thread / Pitch Pressure / Force (n) Select
19-630-100 320 355 630 275 M6 x 1.0 100 Select
19-630-200 320 355 630 275 M6 x 1.0 200 Select
19-630-300 320 355 630 275 M6 x 1.0 300 Select
19-630-400 320 355 630 275 M6 x 1.0 400 Select
19-630-500 320 355 630 275 M6 x 1.0 500 Select
19-630-50 320 355 630 275 M6 x 1.0 50 Selected
19-630-600 320 355 630 275 M6 x 1.0 600 Select
19-630-700 320 355 630 275 M6 x 1.0 700 Select
